Single-Phase Smart Prepaid Energy Meter: Modern Power Management for Homes and Rentals

Electricity bills cause friction. Landlords chase tenants. Utilities disconnect late payers. Families lose track of consumption until the bill arrives. A single-phase smart prepaid energy meter changes this dynamic entirely. It lets users pay before they consume. It shows balance and usage in real time. It disconnects automatically when credit runs out and reconnects just as smoothly after a top-up. Here is what property managers, utility operators, and hardware distributors should know.

How the Meter Manages Money and Electrons

It fuses accurate energy measurement with automated account control in one compact unit

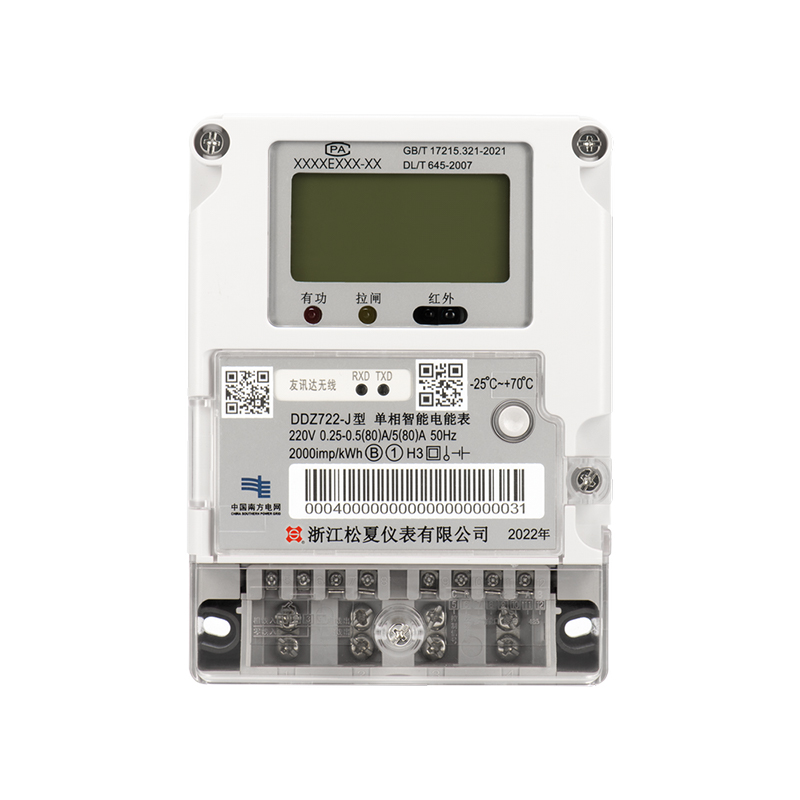

A single-phase smart prepaid energy meter installs on a standard DIN rail between the utility feed and the consumer unit. Current transformers or shunt resistors measure voltage and current with high precision. A microcontroller calculates active energy, logs the data, and deducts from the prepaid balance. When the credit approaches zero, the meter warns the user. When it hits zero, an internal relay disconnects the load.

Metering accuracy and standards

The difference between a compliant meter and a liability is certification. A single-phase smart prepaid energy meter that meets IEC 62053-21 or IEC 62053-31 for active energy accuracy gives utilities and landlords confidence that billing is fair. Class 1 accuracy means measurement error stays below one percent across a wide dynamic range.

The prepaid logic and user interface

Credit is loaded via a numeric token, an NFC card, or a mobile app depending on the meter model. An LCD screen displays remaining balance, current power draw, and total consumption. A single-phase smart prepaid energy meter that shows information clearly reduces calls to the landlord asking why the power went off.

The disconnect relay

The internal relay must break the circuit under load without welding its contacts. It must reconnect cleanly when credit is added. A single-phase smart prepaid energy meter with a latching relay design draws no holding current, which keeps the meter's own power consumption negligible.

Here is what a reliable prepaid meter needs at its core:

• IEC-certified Class 1 accuracy for active energy measurement
• Latching relay rated for full load disconnect under power
• Clear LCD display showing balance, consumption, and low-credit alerts
• Compact DIN-rail form factor for standard electrical panel mounting

Submetering Where It Solves Real Problems

The same device serves landlords, utilities, and solar installers in different ways

A single-phase smart prepaid energy meter finds its natural home wherever one entity supplies power and another entity pays for it. The relationship can be formal, like a utility and a customer, or informal, like a landlord and a tenant in a subdivided property.

Rental properties and multi-tenant buildings

A landlord installs a single-phase smart prepaid energy meter for each unit. Tenants purchase credit in advance. The landlord no longer mediates bill disputes or absorbs unpaid consumption. The system enforces payment automatically and fairly.

Rural electrification and microgrids

Small utilities and cooperatives use prepaid metering to serve remote customers where monthly billing logistics are expensive. A single-phase smart prepaid energy meter lets rural customers pay small amounts as their cash flow allows, and the utility avoids the cost of sending disconnect crews.

Solar home systems with grid backup

A hybrid installation uses the meter to manage grid consumption while solar covers base loads. The user pays only for what the panels cannot supply. A single-phase smart prepaid energy meter tracks the import separately and deducts from the balance only when the grid is actually used.

The Communication Methods That Matter

A meter that sits in a basement cannot be read from a desktop without the right connection

A single-phase smart prepaid energy meter communicates its data and receives top-up instructions through one or more channels. The right choice depends on the installation environment and the service provider's backend infrastructure.

NFC and contactless cards

For single-unit installations, an NFC interface lets the user tap a phone or a top-up card against the meter. No network wiring is required. A single-phase smart prepaid energy meter with NFC works in basements and metal enclosures where cellular signals cannot reach.

RS-485 and wired networks

In multi-meter buildings, a daisy-chain RS-485 bus connects all meters to a central data concentrator or gateway. The gateway handles remote communication on behalf of the meters. A single-phase smart prepaid energy meter with a Modbus RTU protocol over RS-485 integrates cleanly into building management systems.

Cellular and wireless modules

A meter with an embedded 2G, 4G, or NB-IoT module communicates directly with the utility server. Top-ups process in near real time. A single-phase smart prepaid energy meter with on-board cellular reduces installation complexity because no separate gateway is needed. The trade-off is that signal strength must be adequate at the meter location.

What to Look for in a Supplier

A certified meter from an unknown factory still carries risk

A capable single-phase smart prepaid energy meter manufacturer provides type-test certificates from an accredited laboratory. It publishes firmware update policies and the expected lifespan of the internal relay and backup battery. It maintains a token generation system or API that integrates with the buyer's billing platform. Here is what to verify.

Certification documents

Ask for the IEC or local metrology certificate. A single-phase smart prepaid energy meter sold into regulated markets must carry the approval mark of the destination country's standards body. A factory that cannot produce these documents adds regulatory risk to the purchase.

Token system and security

Prepaid tokens must be secure against duplication and prediction. A single-phase smart prepaid energy meter that uses the STS standard token system ensures interoperability and proven encryption. Proprietary token systems require more scrutiny of the security architecture.

A single-phase smart prepaid energy meter changes the relationship between the energy supplier and the energy consumer from credit-based to prepaid. It eliminates chasing, disconnecting, and writing off bad debt. It puts the consumer in direct control of their energy budget. Choose a meter built with certified accuracy, a reliable disconnect relay, and the right communication interface for the installation. Your energy sales will be collected before consumption. That is the function of a single-phase smart prepaid energy meter.
